Part # MBSV14520285282I644

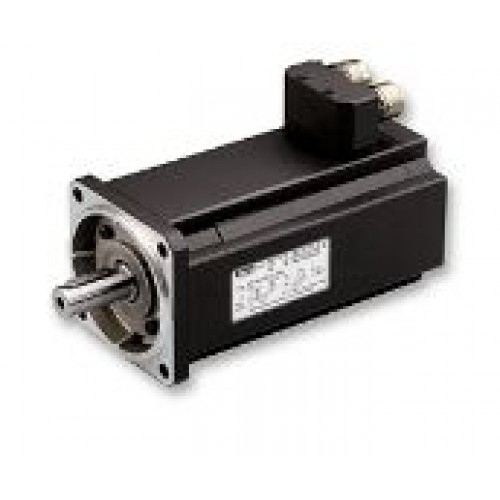

[MB]    : MB-Series Brushless Servo Motor - for use with SBC Series Drives

[    ]    : No Brake Option

[SV]  : Fan Cooled, Motorised

[145] : 145mm Frame Motor

[20]    : 2000 RPM / 400V Winding

[28]      : 28Nm Continuous Stall Torque

[5]      : Flange 5

[28]    : Shaft 28mm Diameter x 60mm Length

[   ]      : Shaft with Keyway

[2I]        : 2x Rotatable Interconnectron Connectors

[  ]      : Standard Form

[64]      : IP64 Protection Class

[    ]      : Resolver Feedback (Standard)

[    ]      : Standard Inertia

[4]      : 400V Winding
