| General information | ||
|---|---|---|
| Order number | 700-972-0BA41 | |
| Article name | PROFIBUS connector, 35° , screw terminal, without PG | |
| Scope of delivery | PROFIBUS connector, installation instructions | |
| Dimensions (DxWxH) | 54 x 40 x 17 mm | |
| Weight | Approx. 40 g | |
| Cable outlet | 35° angled cable outlet | |
| PROFIBUS interface | ||
| Number | 1 | |
| Transmission rate | max. 12 Mbps | |
| Connection | SUB-D connector, 9-pin | |
| Terminating resistor | Resistor combination integrated and switchable using slide switch | |
| PG connection socket | No | |
| PROFIBUS bus cable | 60/75 °C copper cable up to 1.0 mm2 | |
| Connector | ||
| Connector type | terminal strips | |
| Number | 4 | |
| Maximum outside diameter | 8.0 mm | |
| Voltage supply | +4.75 … +5.25 V DC (must come from the device) | |
| Current draw | Max. 12.5 mA | |
| Ambient conditions | ||
| Ambient temperature | -25 °C … +85 °C( The maximum ambient temperature for UL is +60 °C.) | |
| Transport and storage temperature | -25 °C … +85 °C | |
| Relative air humidity | 70 % at +25 °C | |
| Pollution degree | 2 | |
| Protection rating | IP20 | |
| Certifications | CE, UL | |
| CE | ||
| RoHS | Yes | |
| REACH | Yes | |

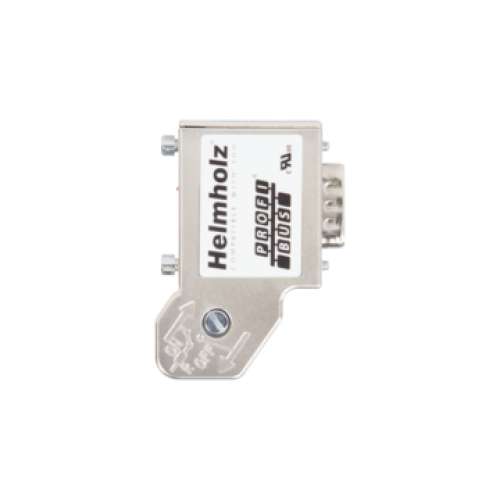

PROFIBUS connector, 35°, screw terminal 700-972-0BA41
- Marca: HELMHOLZ
- Ref: 700-972-0BA41
- Disponibilidad: 5-7 Dias
-
0,00€
- Con impuestos: 0,00€
- Portes Gratis
- Agotado temporalmente
