| General information | ||
|---|---|---|
| Order number | 700-901-1BB20 | |
| Article name | PROFINET connector, RJ45, EasyConnect®, 90° | |
| Scope of delivery | PROFINET connector, installation instructions | |
| Dimensions (DxWxH) | 43.5 x 40.5 x 16.2 mm | |
| Weight | Approx. 35 g | |
| PROFINET interface | ||
| Number | 1 | |
| Physical layer | Ethernet | |
| Transmission rate | max. 100 Mbps | |
| Connection | RJ45 connector | |
| Connectors | ||
| Cable outlet | 90° | |
| Connector type | EasyConnect® | |
| Connectible cables | PROFINET cable | |
| Cable cross-section | 4 x 24 AWG or 22 AWG | |
| Outside diameter | 6.2 ... 6.7 mm | |
| Ambient conditions | ||
| Ambient temperature | -30 °C ... +70°C | |
| Transport and storage temperature | -40 °C … +80 °C | |
| Relative air humidity | 95 % r H without condensation | |
| Pollution degree | 2 | |
| Protection rating | IP20 | |
| Certifications | CE, UL | |
| CE | ||
| RoHS | Yes | |
| REACH | Yes | |

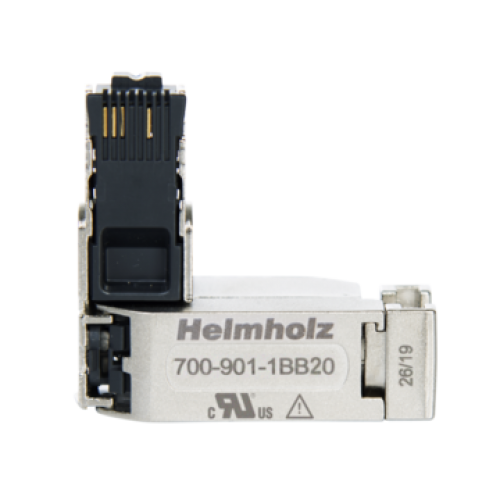

Conector PROFINET connector, RJ45, EasyConnect® 700-901-1BB20
- Marca: HELMHOLZ
- Ref: 700-901-1BB20
- Disponibilidad: 5-7 Dias
-
0,00€
- Con impuestos: 0,00€
- Portes Gratis
- Agotado temporalmente
