| General information | ||
|---|---|---|
| Order number | 700-875-WAN01 | |
| Article name | REX 100 WAN, 3 x LAN (switch)/1 x WAN port | |
| Scope of delivery | REX 100 WAN, Quick Start Guide | |
| Dimensions (DxWxH) | 32,5 x 58,5 x 76,5 mm | |
| Weight | Approx. 130 g | |
| Number of inputs | type | 2 | 24 V (DC), as per DIN EN 61131-2 Type 2 | |
| WAN interface | ||
| Number | 1 | |
| Type | 10 Base-T/100 Base-T | |
| Connection | RJ45 socket | |
| Transmission rate | 10/100 Mbps | |
| LAN interface | ||
| Number | 3 | |
| Type | 10 Base-T/100 Base-T | |
| Connection | RJ45 socket | |
| Transmission rate | 10/100 Mbps | |
| USB interface | ||
| Protocol | USB 2.0 host | |
| Connection | USB A socket | |
| Status indicator | 4 LEDs, function status 8 LEDs, Ethernet status | |
| Voltage supply | 24 V DC, 18–30 V DC | |
| Current draw | Max. 250 mA bei DC 24 V | |
| Power dissipation | Max. 2.4 W | |
| Ambient conditions | ||
| Ambient temperature | -40 °C ... +75°C | |
| Transport and storage temperature | -40 °C … +85 °C | |
| Relative air humidity | 95 % r H without condensation | |
| Pollution degree | 2 | |
| Protection rating | IP20 | |
| Certifications | CE, UL | |
| CE | ||
| RoHS | Yes | |
| REACH | Yes | |
| UL | ||
| UL | UL 61010-1/ UL 61010-2-201 | |
| Voltage supply | DC 24 V (18 ... 30 V DC, SELV and limited energy circuit) | |
| Pollution degree | 2 | |
| Altitude | Up to 2,000 m | |
| Temperature cable rating | 87 °C | |

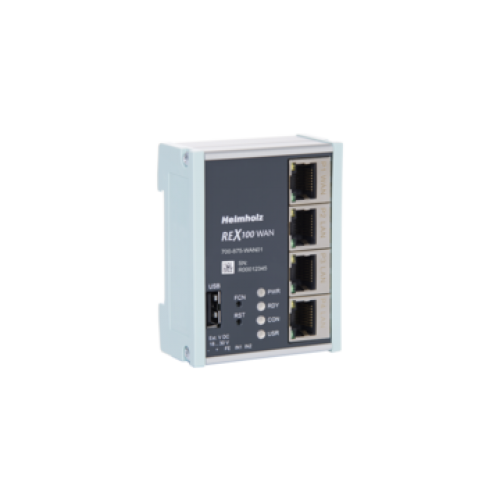

REX 100 WAN, 3 x LAN (switch)/1 x WAN interface 700-875-WAN01
- Marca: HELMHOLZ
- Ref: 700-875-WAN01
- Disponibilidad: 5-7 Dias
-
0,00€
- Con impuestos: 0,00€
- Portes Gratis
- Agotado temporalmente
